GIS Termination kIT


We are suppliers of Nexans Euromold Touch proof Plug in GIS Termination kit imported from Europe. Our GIS Termination Kits are Plug in Touch proof Type. These Plug in  GIS Termination Kit / Boots are available for voltage ranges upto 42KV. We offer NEXANS EUROMOLD, NKT and PFISTERER make Touch proof Plug in GIS Termination Kit.Our Plug in GIS Termination Kit are suitable for all types of GIS & these Plug in Euromold GIS Termination Kit are of Touch proof type

GIS Termination kIT

GIS Termination kIT


We distribute an extensive range of  Touch proof Cable Termination kit, Touch proof GIS Terminations , Plug in GIS Termination kit , Touch proof Cable Jointing Kit ,TEE Connector ,Touch proof Euromold GIS Termination Kit , Plug in type Euromold GIS Termination Kit Separable Elbow Connector , Euromold GIS Termination Kit , Pfisterer  Plug in GIS Termination Kit , Euromold Tee Connector ,  Nexans GIS Termination Kit , Elastimold GIS Termination Kit ,NKT GIS Termination Kit , Nexans Tee Connector ,Touch proof Euromold  Termination Kit , Euromold GIS Termination Kit Cable Plugs & Cable Connection Systems for high voltage polymeric (XLPE EPR) and paper (PILC) insulated cables  compatible with air and gas insulated switchgear and oil filled switchgear and transformers manufactured by ABB, Siemens, Eaton Alstom, Brush, Schneider and Hawker Siddley. High voltage electrical system designers and contractors should be attentive to the short circuit forces generated by high voltage power cables and select cable cleats to provide cable support and containment - Ellis Patents Cable Cleats provide reliable cable cleating of high voltage and extra high voltage cables, 11-33kV up to 400kV.

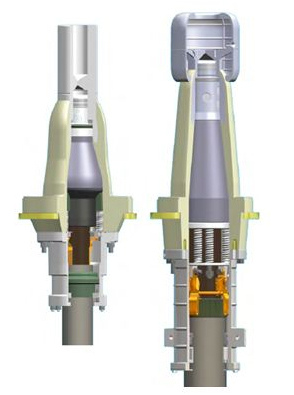

SF6 GIS Cable Termination Kit, Euromold GIS Termination Kit , NKT GIS Termination Kit , Plug in GIS Termination Kit ,  designed for Gas Insulated Switchgear (GIS) are cable terminations for polymeric cables are based on Pre-moulded Stress Cones and are currently available for LV , MV & HV polymeric cables from up to 42kV. Because of outstanding electrical and mechanical properties, ethylene-propylene rubber (EPR) is the chosen material for the rubber mouldings. Each moulding is mechanically and electrically tested before leaving the factory.

Euromold GIS Termination Kit Models

Maximum voltage

Conductor cross Section

Bushing Type

K480TB Model GIS Termination Kit

11KV , 24KV

95-300 sq.mm

Interface C

M480TB Model GIS Termination Kit

36KV

95-300 sq.mm

Interface C

K484TB   Model GIS Termination Kit

11KV , 24KV

300-630  sq.mm

Interface C

M484TB   Model GIS Termination Kit

36KV

300-630  sq.mm

Interface C

K430TB Model GIS Termination Kit

11KV , 24KV

95-300 sq.mm

Interface C

M430TB Model GIS Termination Kit

36KV

95-300 sq.mm

Interface C
